Always-On Automated Playout

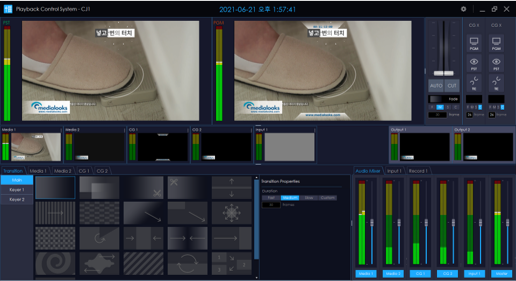

The playout engine — a software-based master switcher that plays media. It supports most broadcast formats and handles CG and logo keyers, audio mixing, and recording on one screen.

• 01Software master switcher
  plays and switches media without a separate hardware switcher.
• 02Keyers & audio mixing
  supports keyers for CG and logo overlay, audio mixing, and MXF/MP4 recording.
• 03Flexible outputs
  SDI as standard, with optional RTMP, UDP, SRT, RTP, and RTSP streaming.

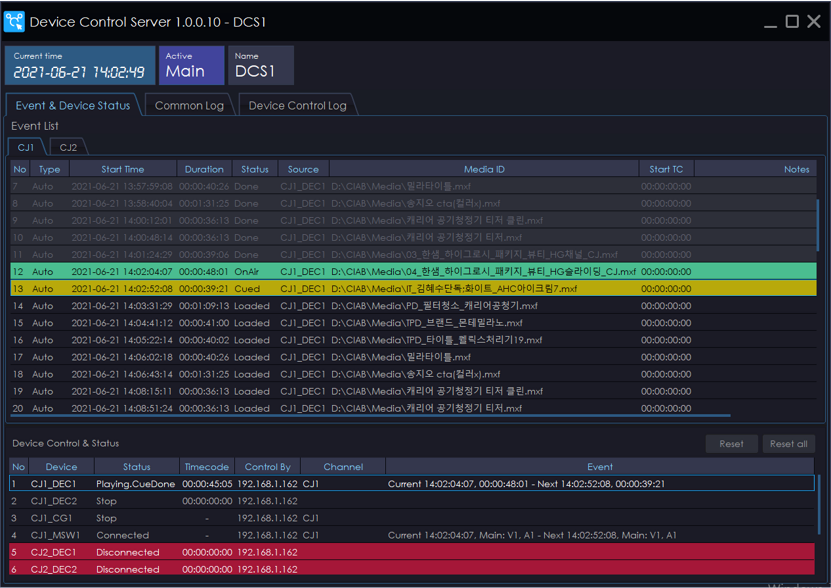

The server that controls playout equipment — switchers, video servers, routers, and graphics. It maintains its own event queue, so playout continues even if the upstream controller (SEC) fails.

• 01Unified device control
  controls switchers, video servers, routers, and graphics systems together.
• 02Persistent event queue
  holds scheduled events in its own queue so playout never stops, even during an SEC failure.
• 03Dual & triple configurations
  supports redundant configurations for reliability.

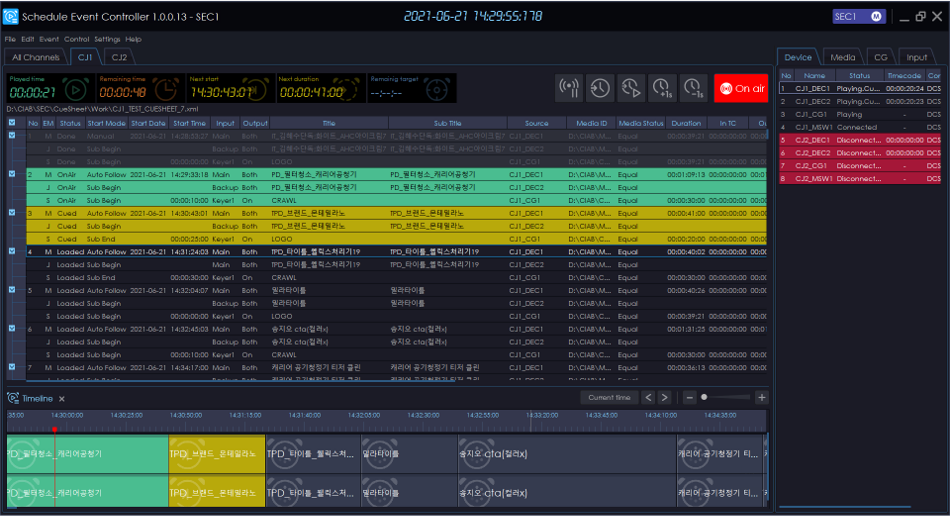

The controller that receives schedules, prepares events, and provides the operator monitoring screen. It watches up to four channels at once on a timeline.

• 01Schedule reception & event preparation
  takes in the schedule and expands it into playout events.
• 02Timeline monitoring
  view up to four channels simultaneously on a timeline.
• 03Event grouping
  bundles related events such as titles, commercials, and programs for at-a-glance management.

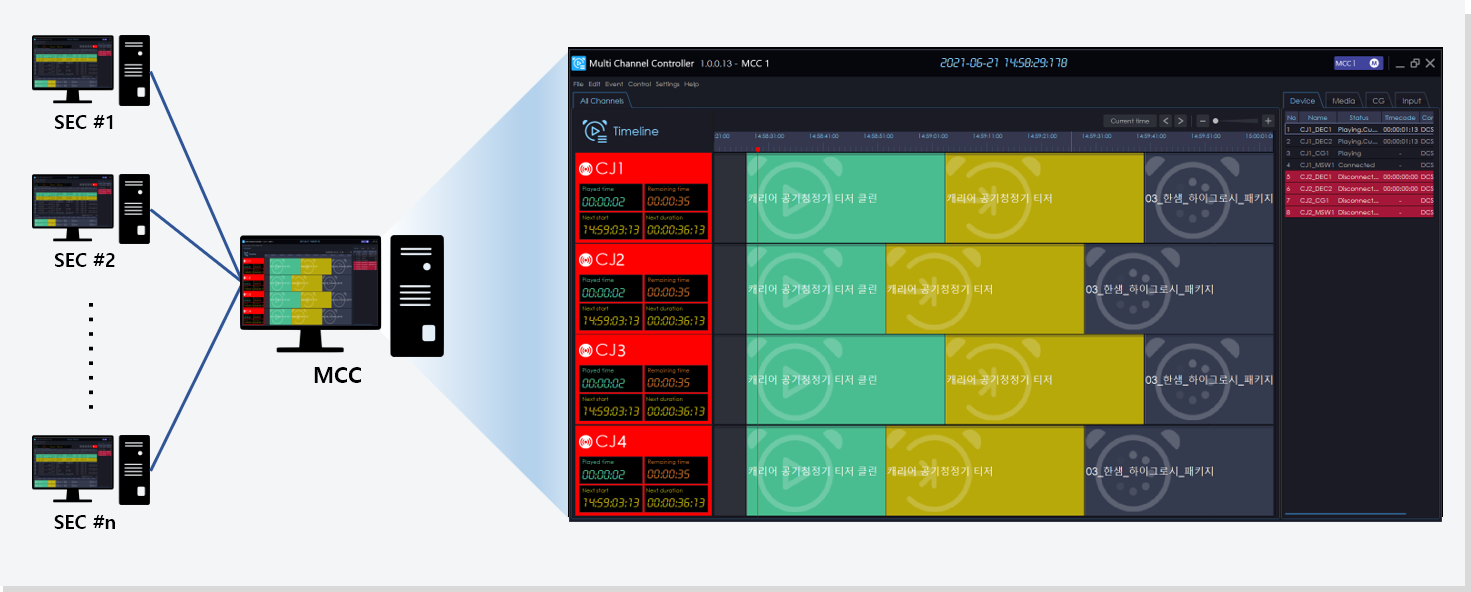

The monitoring and control tool that brings the status of every running channel onto one timeline view. In multi-channel operations, faults are identified and handled fast.

• 01All channels on one screen
  see the status of every running channel at once.
• 02Timeline status display
  shows each channel's progress in a timeline format.
• 03Rapid fault response
  detects and responds to anomalies quickly across multi-channel environments.
